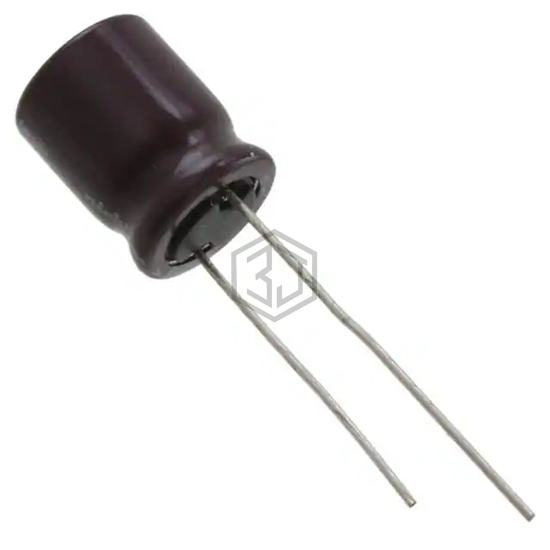

CAP ALUM 150UF 20% 35V RADIAL
UPJ1V151MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,910
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 435 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 200 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1V151MPD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1E151MGD1TA | Nichicon | CAP ALUM 150UF 20% 25V RADIAL | 77% | View |
| 600D157G050DL4 | Vishay Sprague | CAP ALUM 150UF 50V AXIAL | 77% | View |
| ELXZ350EC3151MH12D | United Chemi-Con | CAP ALUM 150UF 20% 35V RADIAL | 74% | View |
| ELXZ350ELL151MH12S | United Chemi-Con | CAP ALUM 150UF 20% 35V RADIAL | 74% | View |
| 860080273005 | Würth Elektronik | CAP ALUM 150UF 20% 10V RADIAL | 61% | View |
| MAL211636151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 25V RADIAL | 51% | View |
