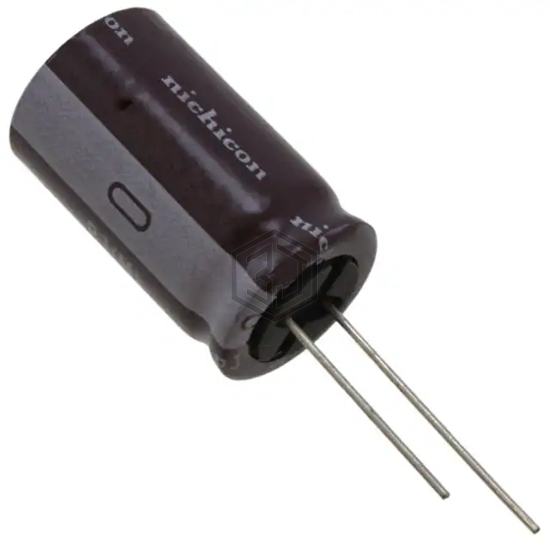

CAP ALUM 560UF 20% 80V RADIAL
UPJ1K561MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 7,494
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.49 A @ 10 kHz |
| Impedance | 72 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1K561MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1H561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 76% | View |
| B41888C4567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 16V RADIAL | 68% | View |
| ELXV250ELL561MJ25S | United Chemi-Con | CAP ALUM 560UF 20% 25V RADIAL | 66% | View |
| 860080274012 | Würth Elektronik | CAP ALUM 560UF 20% 10V RADIAL | 62% | View |
| EEU-HD1H561S | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 61% | View |
| B41858C4567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 16V RADIAL | 55% | View |
Submit your RFQ for UPJ1K561MHD6 and get a quote within 24 hours.
