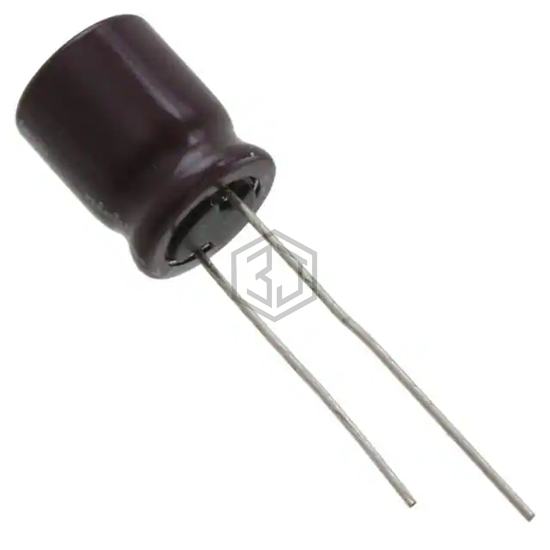

CAP ALUM 47UF 20% 80V RADIAL
UPJ1K470MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 3,327
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 174 mA @ 120 Hz |
| Ripple Current @ High Frequency | 293 mA @ 10 kHz |
| Impedance | 420 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1K470MPD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ2A470MPD1TD | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 89% | View |
| EKMQ101ELL470MHB5D | United Chemi-Con | CAP ALUM 47UF 20% 100V RADIAL | 84% | View |
| RF1H470MP26311ERU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 72% | View |
| 678D476M063CD3DE3 | Vishay Sprague | CAP ALUM 47UF 20% 63V RADIAL | 70% | View |
| 860160573007 | Würth Elektronik | CAP ALUM 47UF 20% 35V RADIAL | 65% | View |
| 672D476F040CD5C | Vishay Sprague | CAP ALUM 47UF 40V RADIAL | 56% | View |
Submit your RFQ for UPJ1K470MPD6 and get a quote within 24 hours.
