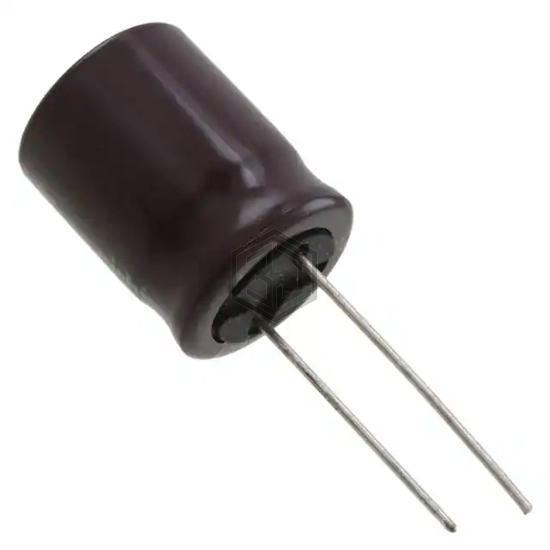

CAP ALUM 270UF 20% 80V RADIAL
UPJ1K271MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 3,659
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 742 mA @ 120 Hz |
| Ripple Current @ High Frequency | 995 mA @ 10 kHz |
| Impedance | 110 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1K271MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 277KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 270UF 20% 100V RADIAL | 78% | View |
| EEU-FK1E271 | Panasonic Electronic Components | CAP ALUM 270UF 20% 25V RADIAL TH | 59% | View |
| MAL213655271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 16V RADIAL | 58% | View |
| 672D277F040DT2D | Vishay Sprague | CAP ALUM 270UF 40V RADIAL | 56% | View |
| 672D287H025DM5J | Vishay Sprague | CAP ALUM 280UF 25V RADIAL | 53% | View |
| 600D287G040DX5 | Vishay Sprague | CAP ALUM 280UF 40V AXIAL | 53% | View |
