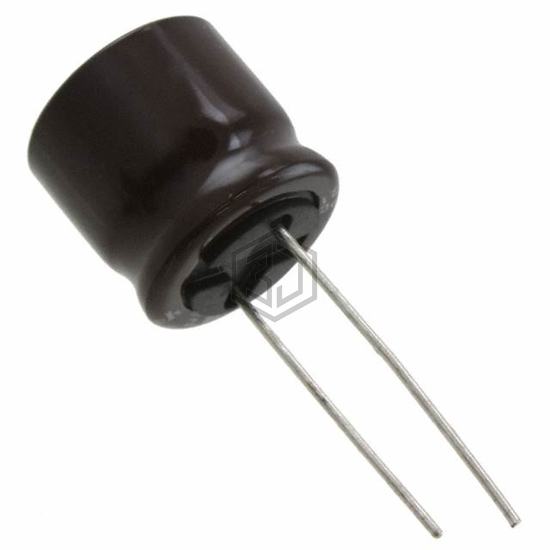

CAP ALUM 180UF 20% 80V RADIAL
UPJ1K181MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 111
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 543 mA @ 120 Hz |
| Ripple Current @ High Frequency | 766 mA @ 10 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1K181MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C9187M000 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 100V RADIAL | 84% | View |
| UPW1J181MHD6CT | Nichicon | CAP ALUM 63V POLAR | 81% | View |
| ELXV101ELL181ML20S | Chemi-Con | CAP ALUM 100V POLAR | 78% | View |
| 187KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 180UF 20% 100V RADIAL | 75% | View |
| UPM1J181MHD6 | Nichicon | CAP ALUM 180UF 20% 63V RADIAL | 73% | View |
| ELXV350ELL181MH15D | United Chemi-Con | CAP ALUM 180UF 20% 35V RADIAL | 51% | View |
Submit your RFQ for UPJ1K181MHD6TN and get a quote within 24 hours.
