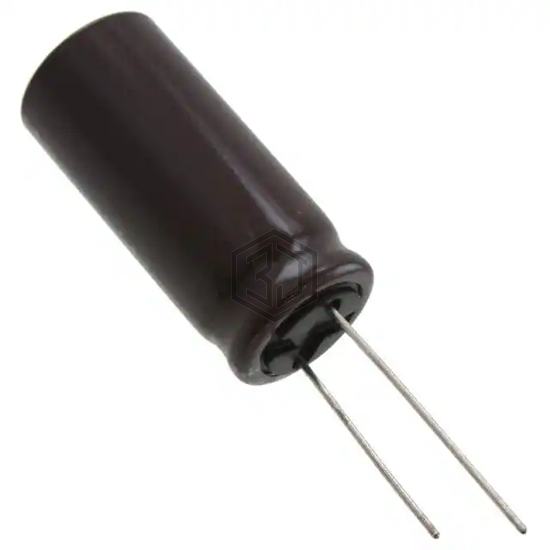

CAP ALUM 820UF 20% 63V RADIAL
UPJ1J821MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,647
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.88 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.22 A @ 10 kHz |
| Impedance | 40 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1J821MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW1J821MHD6 | Nichicon | CAP ALUM 820UF 20% 63V RADIAL | 95% | View |
| B41896C5827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 25V RADIAL | 66% | View |
| B41689A8827Q001 | EPCOS - TDK Electronics | CAP ALUM 820UF 63V AXIAL | 66% | View |
| B41689K8827Q001 | EPCOS - TDK Electronics | CAP ALUM 820UF 63V AXIAL | 65% | View |
| 860080375018 | Würth Elektronik | CAP ALUM 820UF 20% 16V RADIAL | 61% | View |
| B41896C4827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 16V RADIAL | 53% | View |
Submit your RFQ for UPJ1J821MHD and get a quote within 24 hours.
