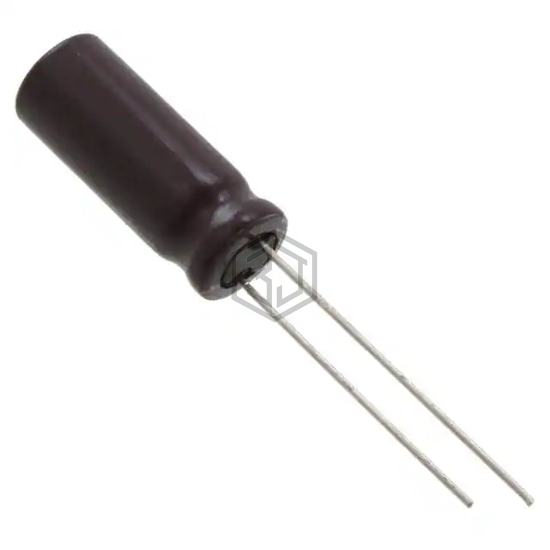

CAP ALUM 82UF 20% 63V RADIAL
UPJ1J820MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,755
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 385 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 10 kHz |
| Impedance | 220 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1J820MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D826H075EK5C | Vishay Sprague | CAP ALUM 82UF 75V RADIAL | 89% | View |
| UPJ1H820MPD1TD | Nichicon | CAP ALUM 82UF 20% 50V RADIAL | 87% | View |
| UPM1K820MHD6TO | Nichicon | CAP ALUM 82UF 20% 80V RADIAL | 86% | View |
| B41858C6826M000 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 50V RADIAL | 85% | View |
| EY1J820MP510C5ER | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 84% | View |
| UPW2A820MPH | Nichicon | CAP ALUM 82UF 20% 100V RADIAL | 80% | View |
Submit your RFQ for UPJ1J820MPD and get a quote within 24 hours.
