CAP ALUM 390UF 20% 63V RADIAL

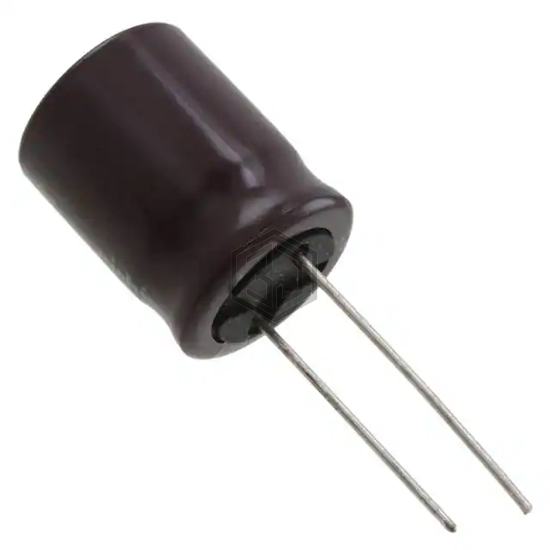

UPJ1J391MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,564
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.17 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 10 kHz |
| Impedance | 70 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1J391MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1H391SB | Panasonic Electronic Components | CAP ALUM 390UF 20% 50V RADIAL | 90% | View |
| MAL224668391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 63V RADIAL | 82% | View |
| EY2A391MNN1240 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 78% | View |
| B41890A6397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 50V RADIAL | 73% | View |
| UPA1V391MPD | Nichicon | CAP ALUM 390UF 20% 35V RADIAL | 69% | View |
| 604D391F200JT7 | Vishay Sprague | CAP ALUM 390UF 200V AXIAL | 54% | View |
Submit your RFQ for UPJ1J391MHD6TN and get a quote within 24 hours.
