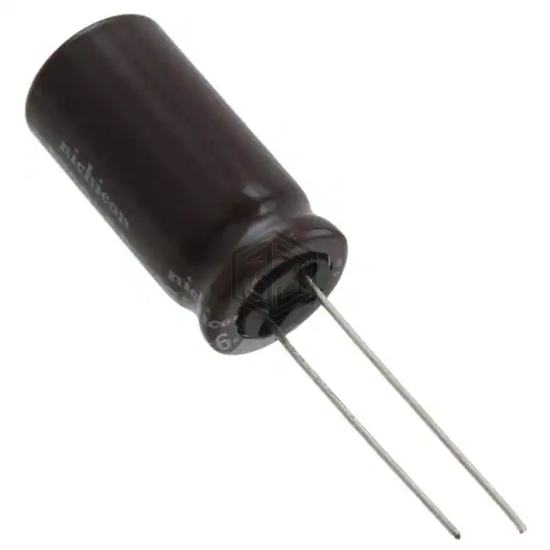

CAP ALUM 330UF 20% 63V RADIAL
UPJ1J331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 2,497
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.42 A @ 10 kHz |
| Impedance | 72 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1J331MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXZ630ELL331MK20S | United Chemi-Con | CAP ALUM 330UF 20% 63V RADIAL | 85% | View |
| RXW331M1HBK-1020S | SURGE | CAP ALUM 330UF 20% 50V RADIAL | 80% | View |
| B41858C6337M8 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 50V RADIAL | 76% | View |
| MAL213659331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 100V RADIAL | 73% | View |
| MAL211848331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V T/H | 72% | View |
| MAL216035331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 64% | View |
Submit your RFQ for UPJ1J331MHD and get a quote within 24 hours.
