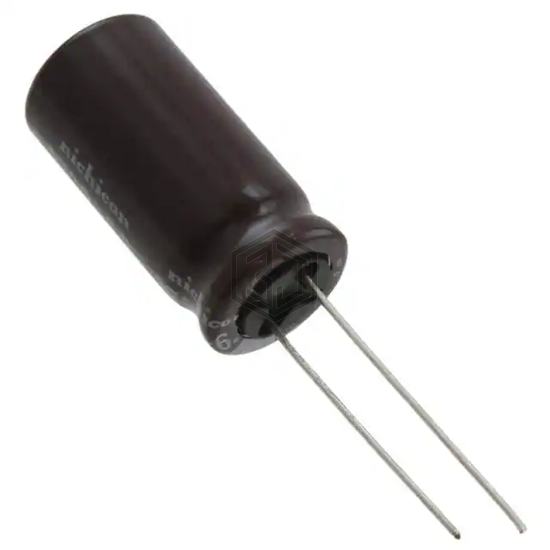

CAP ALUM 270UF 20% 63V RADIAL
UPJ1J271MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 2,441
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.34 A @ 10 kHz |
| Impedance | 81 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1J271MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 277KXM063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 270UF 20% 63V RADIAL | 88% | View |
| UPW1H271MPD | Nichicon | CAP ALUM 270UF 20% 50V RADIAL | 86% | View |
| 860080675016 | Würth Elektronik | CAP ALUM 270UF 20% 50V RADIAL | 79% | View |
| B41789K8277Q001 | EPCOS - TDK Electronics | CAP ALUM 270UF 63V RADIAL | 72% | View |
| EJ2A271MNN1040 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 66% | View |
| EEU-FK1V271B | Panasonic Electronic Components | CAP ALUM 270UF 20% 35V RADIAL TH | 64% | View |
Submit your RFQ for UPJ1J271MHD1TO and get a quote within 24 hours.
