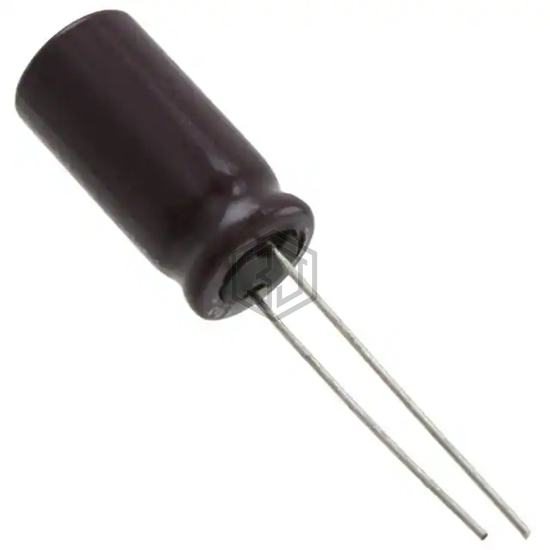

CAP ALUM 120UF 20% 63V RADIAL
UPJ1J121MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 2,685
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 555 mA @ 120 Hz |
| Ripple Current @ High Frequency | 820 mA @ 10 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1J121MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY630ELL121MJ20S | United Chemi-Con | CAP ALUM 120UF 20% 63V RADIAL | 79% | View |
| ELXY500ELL121MJ16S | United Chemi-Con | CAP ALUM 120UF 20% 50V RADIAL | 78% | View |
| MAL213651121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 50V RADIAL | 76% | View |
| MAL213638121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 63V RADIAL | 75% | View |
| THAS121M200AA0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 200V FLATPACK | 72% | View |
| ELXZ500ELL121MH15D | United Chemi-Con | CAP ALUM 120UF 20% 50V RADIAL | 72% | View |
Submit your RFQ for UPJ1J121MPD and get a quote within 24 hours.
