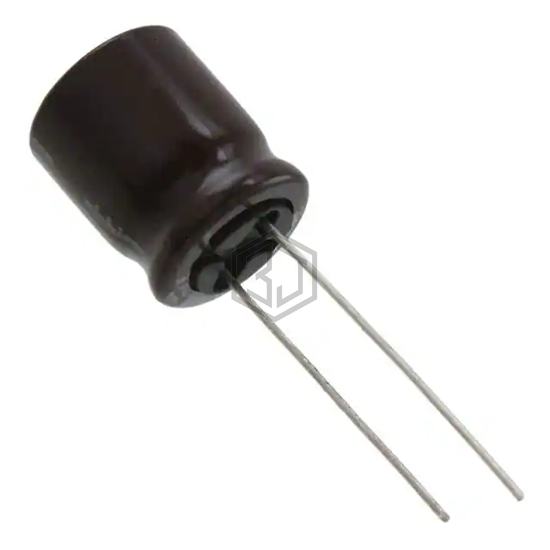

CAP ALUM 120UF 20% 63V RADIAL
UPJ1J121MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 3,744
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 10 kHz |
| Impedance | 180 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1J121MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1H121LB | Panasonic Electronic Components | CAP ALUM 120UF 20% 50V RADIAL | 84% | View |
| EEU-FC1H121L | Panasonic Electronic Components | CAP ALUM 120UF 20% 50V RADIAL | 84% | View |
| EEU-FC2A121SB | Panasonic Electronic Components | CAP ALUM 120UF 20% 100V RADIAL | 83% | View |
| 127KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 120UF 20% 50V RADIAL | 83% | View |
| B41858C6127M8 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 50V RADIAL | 74% | View |
| B41890A7127M | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 35V RADIAL | 68% | View |
