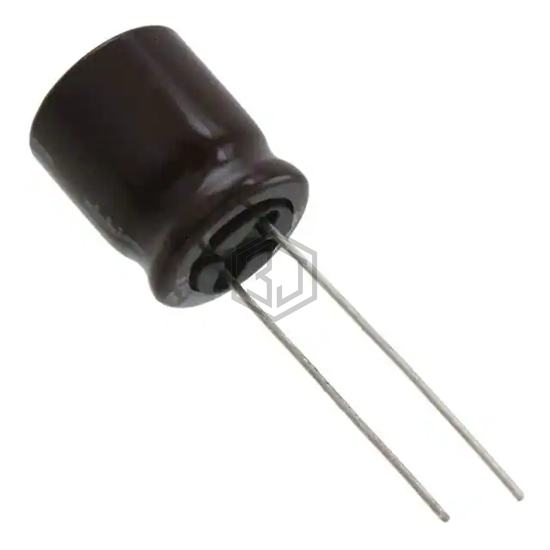

CAP ALUM 100UF 20% 63V RADIAL
UPJ1J101MHD6TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 996
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 460 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 200 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1J101MHD6TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214038101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V RADIAL | 87% | View |
| MAL214661101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 50V RADIAL | 70% | View |
| EY1H101MP26315 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 66% | View |
| MAL215050101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 35V RADIAL | 65% | View |
| EKMG500ELL101MHB5D | United Chemi-Con | CAP ALUM 100UF 20% 50V RADIAL | 60% | View |
| 678D107M025CC5D | Vishay Sprague | CAP ALUM 100UF 20% 25V RADIAL | 54% | View |
