CAP ALUM 820UF 20% 50V RADIAL

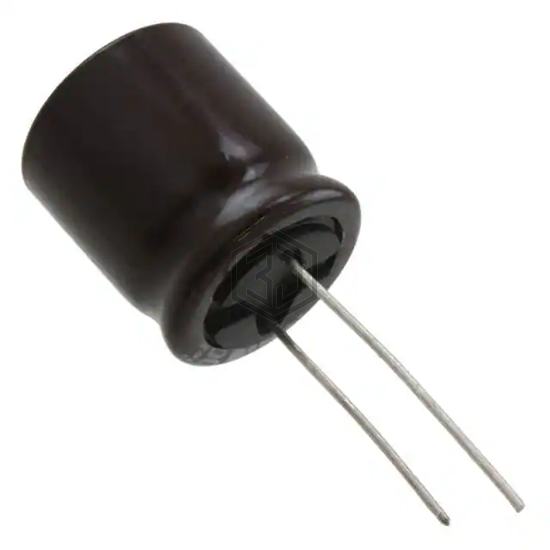

UPJ1H821MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 398
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.53 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.81 A @ 10 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1H821MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858D6827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 50V RADIAL | 99% | View |
| UPW1H821MHH6 | Nichicon | CAP ALUM 820UF 20% 50V RADIAL | 90% | View |
| UPJ1V821MHD1TO | Nichicon | CAP ALUM 820UF 20% 35V RADIAL | 89% | View |
| MAL213661821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V RADIAL | 88% | View |
| B41858C6827M001 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 50V RADIAL | 84% | View |
| UPW1J821MHH6 | Nichicon | CAP ALUM 820UF 20% 63V RADIAL | 82% | View |
Submit your RFQ for UPJ1H821MHD6TN and get a quote within 24 hours.
