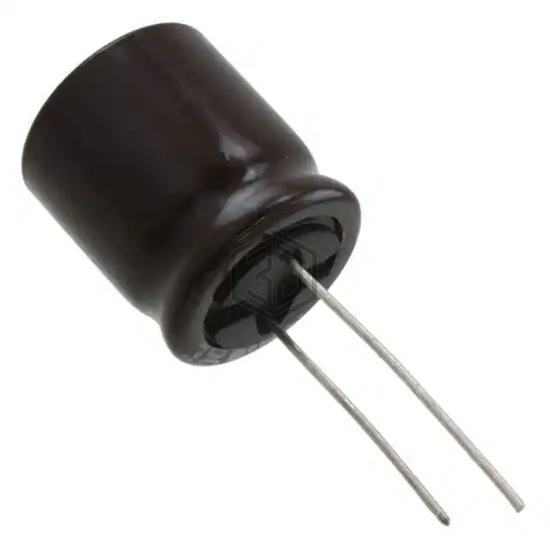

CAP ALUM 820UF 20% 50V RADIAL
UPJ1H821MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,666
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.53 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.81 A @ 10 kHz |
| Impedance | 43 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1H821MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D867G040JJ2 | Vishay Sprague | CAP ALUM 860UF 40V AXIAL | 82% | View |
| B41888D8827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 63V RADIAL | 81% | View |
| ELXY500ELL821ML25S | United Chemi-Con | CAP ALUM 820UF 20% 50V RADIAL | 74% | View |
| B41896C6827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 50V RADIAL | 74% | View |
| EEU-FK1V821 | Panasonic Electronic Components | CAP ALUM 820UF 20% 35V RADIAL TH | 62% | View |
| 678D827M016DM5D | Vishay Sprague | CAP ALUM 820UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for UPJ1H821MHD6 and get a quote within 24 hours.
