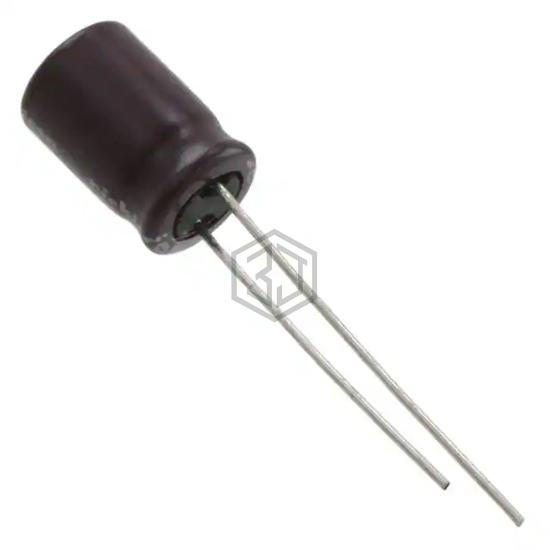

CAP ALUM 68UF 20% 50V RADIAL
UPJ1H680MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 6,412
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 255 mA @ 120 Hz |
| Ripple Current @ High Frequency | 410 mA @ 10 kHz |
| Impedance | 280 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1H680MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1J680BJ | Panasonic Electronic Components | CAP ALUM 68UF 20% 63V RADIAL | 88% | View |
| EKMG350EC3680MF11D | United Chemi-Con | CAP ALUM 68UF 20% 35V RADIAL | 77% | View |
| MAL211661689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 50V RADIAL | 75% | View |
| MAL211928689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 63V AXIAL | 70% | View |
| ELXV630ELL680MH15D | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 66% | View |
| MAL211819689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 100V AXIAL | 56% | View |
