CAP ALUM 470UF 20% 50V RADIAL

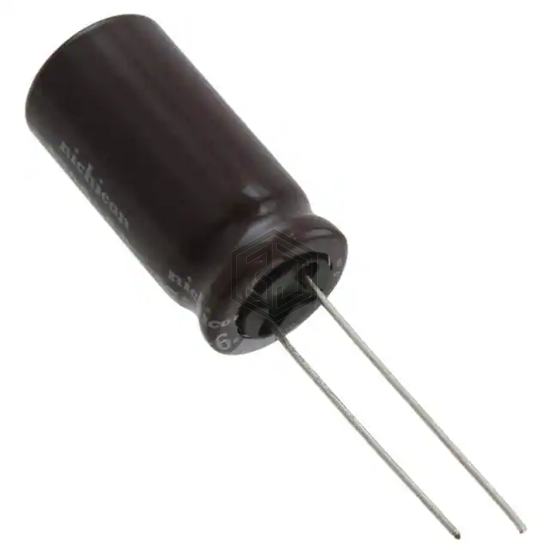

UPJ1H471MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 277
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 10 kHz |
| Impedance | 48 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1H471MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY500EC5471MK25S | United Chemi-Con | CAP ALUM 470UF 20% 50V RADIAL | 89% | View |
| EEU-FC1V471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V RADIAL | 80% | View |
| EY2A471MNN16P1 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 71% | View |
| MAL214030471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 70% | View |
| B41888C5477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 25V RADIAL | 68% | View |
| MAL213699475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 100V RADIAL | 68% | View |
Submit your RFQ for UPJ1H471MHD and get a quote within 24 hours.
