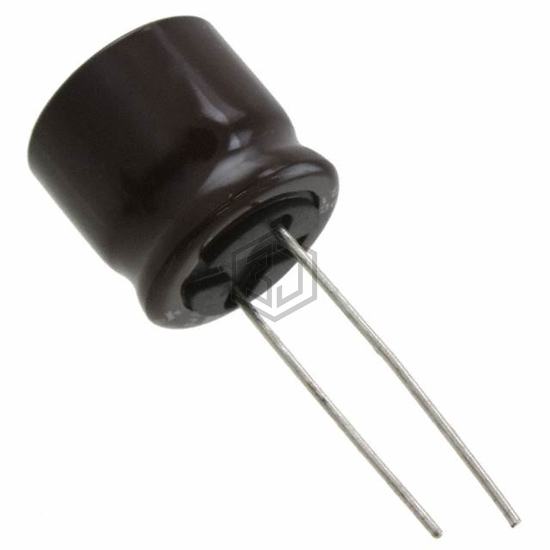

CAP ALUM 270UF 20% 50V RADIAL
UPJ1H271MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 270UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 224
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 840 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.12 A @ 10 kHz |
| Impedance | 91 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1H271MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1V271MPD | Nichicon | CAP ALUM 270UF 20% 35V RADIAL | 72% | View |
| B41858D9277M9 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 100V RADIAL | 70% | View |
| ELXV101EMC271MK40S | United Chemi-Con | CAP ALUM 270UF 20% 100V RADIAL | 61% | View |
| THAS271M200AD0C | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 200V FLATPACK | 60% | View |
| THAS271M200AD1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 200V FLATPACK | 60% | View |
| B41789A8277Q001 | EPCOS - TDK Electronics | CAP ALUM 270UF 63V RADIAL | 58% | View |
Submit your RFQ for UPJ1H271MHD6TN and get a quote within 24 hours.
