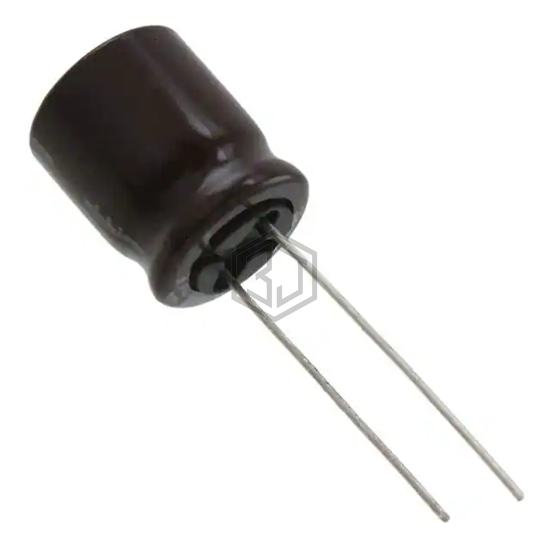

CAP ALUM 150UF 20% 50V RADIAL
UPJ1H151MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,768
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 545 mA @ 120 Hz |
| Ripple Current @ High Frequency | 785 mA @ 10 kHz |
| Impedance | 140 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1H151MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 600D157G050DL4 | Vishay Sprague | CAP ALUM 150UF 50V AXIAL | 100% | View |
| B41888D6157M | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 50V RADIAL | 87% | View |
| MAL215061151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 50V RADIAL | 80% | View |
| MAL211927151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 40V AXIAL | 69% | View |
| ELXZ350EC3151MH12D | United Chemi-Con | CAP ALUM 150UF 20% 35V RADIAL | 63% | View |
| ELXZ350ELL151MH12S | United Chemi-Con | CAP ALUM 150UF 20% 35V RADIAL | 63% | View |
