CAP ALUM 820UF 20% 25V RADIAL

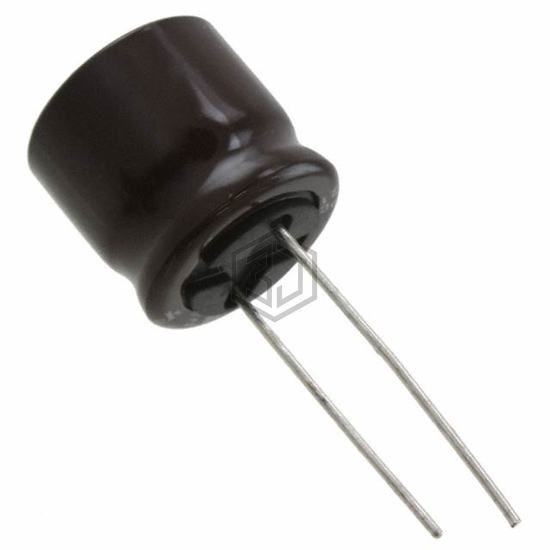

UPJ1E821MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,874
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.13 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.34 A @ 10 kHz |
| Impedance | 79 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1E821MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C5827M8 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 25V RADIAL | 93% | View |
| UPM1E821MHD | Nichicon | CAP ALUM 820UF 20% 25V RADIAL | 89% | View |
| B41888C5827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 25V RADIAL | 88% | View |
| B41890A5827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 25V RADIAL | 86% | View |
| EEU-FK1C821LB | Panasonic Electronic Components | CAP ALUM 820UF 20% 16V RADIAL TH | 75% | View |
| UPM1V821MHD6 | Nichicon | CAP ALUM 820UF 20% 35V RADIAL | 74% | View |
