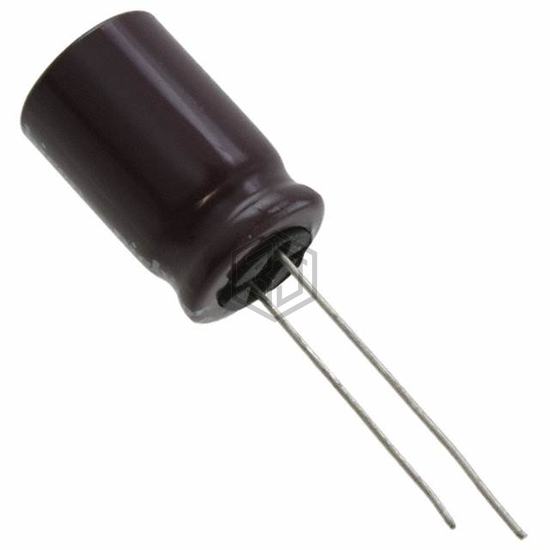

CAP ALUM 820UF 20% 25V RADIAL
UPJ1E821MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,746
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.21 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.43 A @ 10 kHz |
| Impedance | 59 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1E821MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C5827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 25V RADIAL | 95% | View |
| LXY25VB821M10X30LL | United Chemi-Con | CAP ALUM 820UF 20% 25V RADIAL | 89% | View |
| EEU-FC1V821LB | Panasonic Electronic Components | CAP ALUM 820UF 20% 35V RADIAL | 73% | View |
| MAL213661821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V RADIAL | 66% | View |
| B41858D6827M | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 50V RADIAL | 66% | View |
| UPA1A821MPD | Nichicon | CAP ALUM 820UF 20% 10V RADIAL | 58% | View |
Submit your RFQ for UPJ1E821MHD and get a quote within 24 hours.
