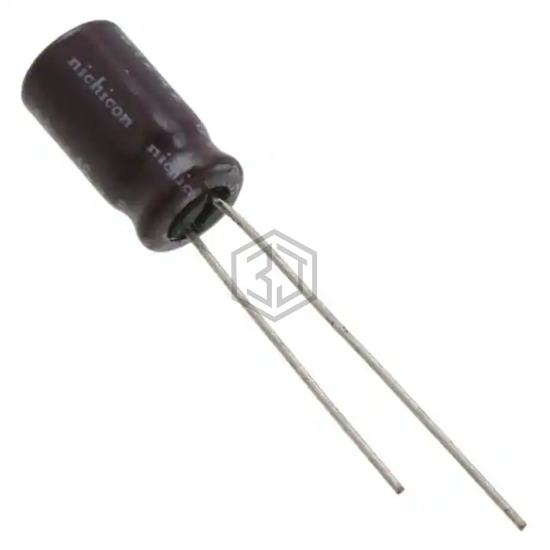

CAP ALUM 56UF 20% 25V RADIAL
UPJ1E560MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,149
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 235 mA @ 10 kHz |
| Impedance | 720 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1E560MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160573008 | Würth Elektronik | CAP ALUM 56UF 20% 35V RADIAL | 86% | View |
| ELXV350EC3560MFB5D | United Chemi-Con | CAP ALUM 56UF 20% 35V RADIAL | 75% | View |
| ELXV500ELL560MF15D | United Chemi-Con | CAP ALUM 56UF 20% 50V RADIAL | 67% | View |
| ELXY500ELL560MF15D | United Chemi-Con | CAP ALUM 56UF 20% 50V RADIAL | 64% | View |
| 860160674017 | Würth Elektronik | CAP ALUM 56UF 20% 50V RADIAL | 60% | View |
| MAL213668569E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 56UF 20% 63V RADIAL | 59% | View |
Submit your RFQ for UPJ1E560MED1TA and get a quote within 24 hours.
