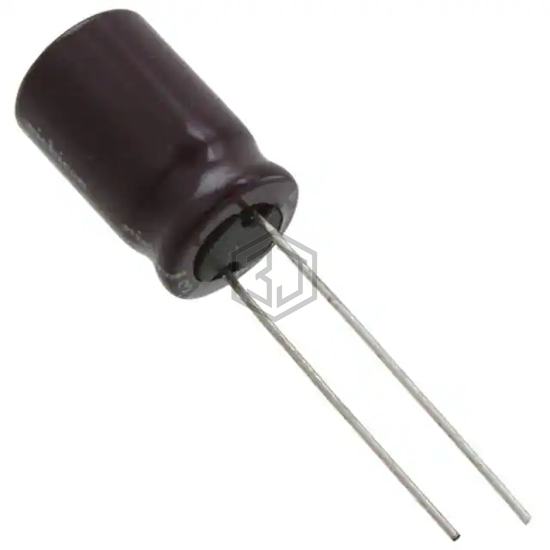

CAP ALUM 330UF 20% 25V RADIAL
UPJ1E331MPD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,271
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 575 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 10 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for UPJ1E331MPD6 and get a quote within 24 hours.
