CAP ALUM 2200UF 20% 25V RADIAL

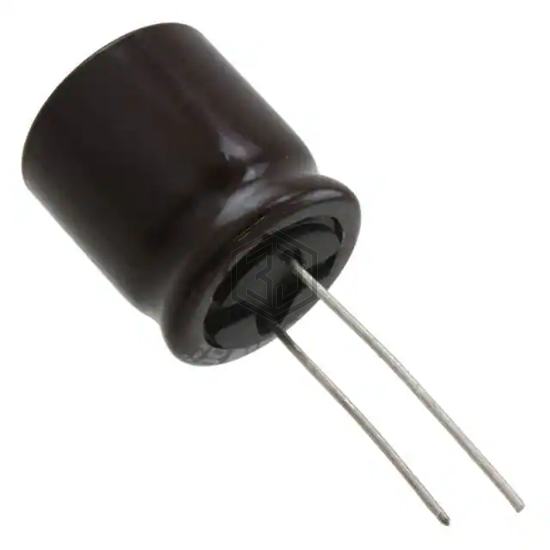

UPJ1E222MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,923
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.84 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.05 A @ 10 kHz |
| Impedance | 40 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1E222MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXV350ELL222ML35S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 75% | View |
| MAL215060222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 72% | View |
| B41858C7228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 35V RADIAL | 71% | View |
| EEU-FC1A222 | Panasonic Electronic Components | CAP ALUM 2200UF 20% 10V RADIAL | 70% | View |
| URZ1E222MHD | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 70% | View |
| MAL214661222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 50V RADIAL | 61% | View |
Submit your RFQ for UPJ1E222MHD6 and get a quote within 24 hours.
