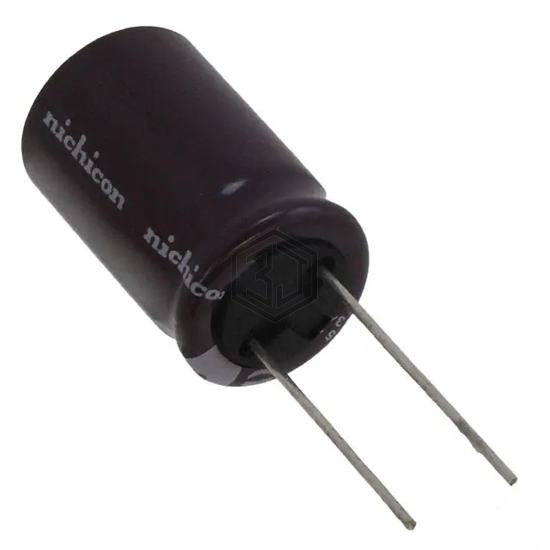

CAP ALUM 1800UF 20% 25V RADIAL
UPJ1E182MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 109
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.98 A @ 10 kHz |
| Impedance | 41 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1E182MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214656182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 25V RADIAL | 96% | View |
| MAL224656182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 25V RADIAL | 91% | View |
| B41888C5188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 25V RADIAL | 86% | View |
| B41858C7188M9 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 35V RADIAL | 79% | View |
| ELXZ350EC5182ML25S | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 75% | View |
| EEU-FK1V182L | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RAD TH | 66% | View |
