CAP ALUM 180UF 20% 25V RADIAL

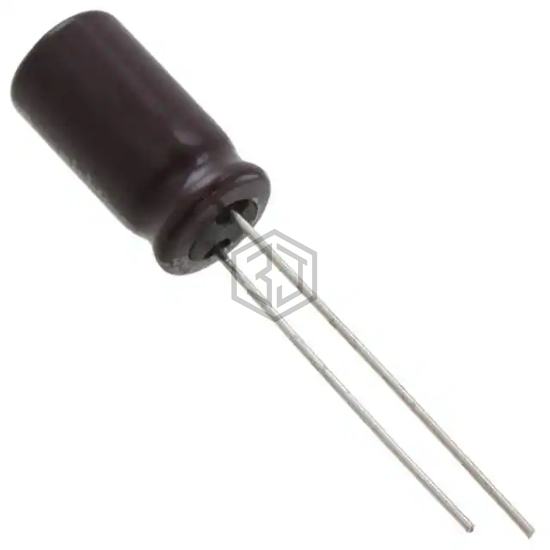

UPJ1E181MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,100
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 550 mA @ 10 kHz |
| Impedance | 220 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1E181MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK181M1EBK-0811S | Surge | CAP ALUM 25V POLAR | 90% | View |
| B41043A5187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 25V RADIAL | 80% | View |
| UPM1C181MED1TD | Nichicon | CAP ALUM 180UF 20% 16V RADIAL | 74% | View |
| ELXV350ELL181MH15D | United Chemi-Con | CAP ALUM 180UF 20% 35V RADIAL | 71% | View |
| 187KXM100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 180UF 20% 100V RADIAL | 67% | View |
| EEU-FC1H181B | Panasonic Electronic Components | CAP ALUM 180UF 20% 50V RADIAL | 58% | View |
