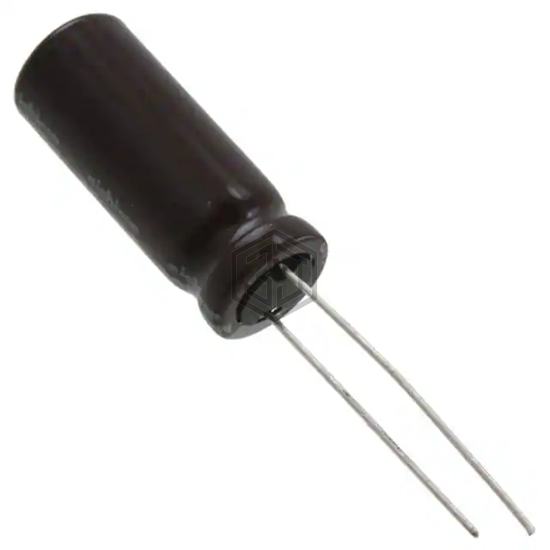

CAP ALUM 820UF 20% 16V RADIAL
UPJ1C821MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,185
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.03 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.22 A @ 10 kHz |
| Impedance | 84 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1C821MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1C821MPD1AA | Nichicon | CAP ALUM 16V POLAR | 93% | View |
| UPM1C821MPD1CA | Nichicon | CAP ALUM 16V POLAR | 93% | View |
| UPW1C821MPD | Nichicon | CAP ALUM 820UF 20% 16V RADIAL | 92% | View |
| 827KXM063MRW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 820UF 20% 63V RADIAL | 63% | View |
| 860160275028 | Würth Elektronik | CAP ALUM 820UF 20% 10V RADIAL | 61% | View |
| ELXZ500ETD821MK35S | United Chemi-Con | CAP ALUM 820UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for UPJ1C821MPD and get a quote within 24 hours.
