CAP ALUM 560UF 20% 16V RADIAL

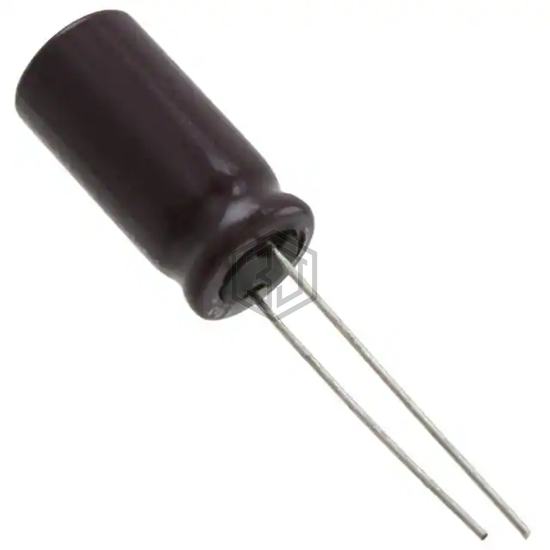

UPJ1C561MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,568
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 770 mA @ 120 Hz |
| Ripple Current @ High Frequency | 950 mA @ 10 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1C561MPD1TD is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 757D567M010CD5D | Vishay Sprague | CAP ALUM 560UF 20% 10V RADIAL | 80% | View |
| B41858C3567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 10V RADIAL | 77% | View |
| UPA1E561MPD1TA | Nichicon | CAP ALUM 560UF 20% 25V RADIAL | 67% | View |
| UPA1A561MPD1TA | Nichicon | CAP ALUM 560UF 20% 10V RADIAL | 66% | View |
| B41858C7567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 35V RADIAL | 60% | View |
| B41858C7567M8 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 35V RADIAL | 60% | View |
