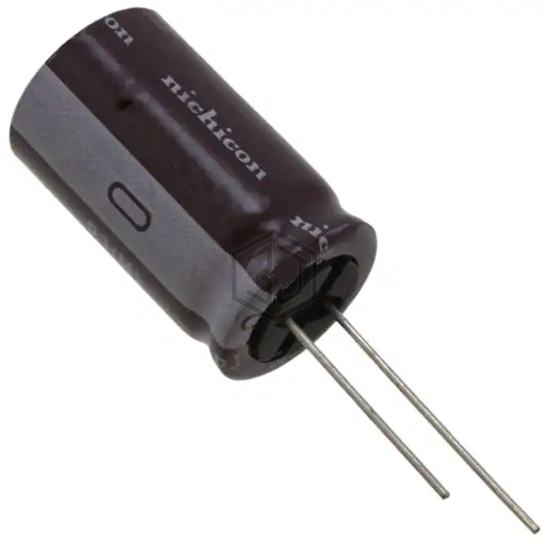

CAP ALUM 4700UF 20% 16V RADIAL
UPJ1C472MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,456
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.24 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.49 A @ 10 kHz |
| Impedance | 28 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1C472MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160380044 | Würth Elektronik | CAP ALUM 4700UF 20% 16V RADIAL | 87% | View |
| 16PX4700MEFCG412.5X25 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 86% | View |
| ELBK350ELL472ALN3S | United Chemi-Con | CAP ALUM 4700UF 35V RADIAL | 68% | View |
| URZ1E472MHD1TN | Nichicon | CAP ALUM 4700UF 20% 25V RADIAL | 67% | View |
| 478KXM025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 25V RADIAL | 67% | View |
| B41890A5478M | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 25V RADIAL | 64% | View |
