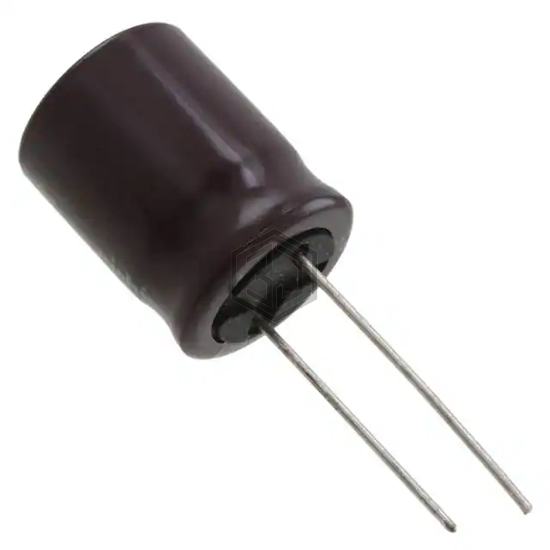

CAP ALUM 2200UF 20% 16V RADIAL
UPJ1C222MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 269
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.62 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 10 kHz |
| Impedance | 48 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1C222MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888W4228M | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 16V RADIAL | 91% | View |
| LXZ16VB222M12X25LL | United Chemi-Con | CAP ALUM 2200UF 20% 16V RADIAL | 90% | View |
| MAL216035222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 88% | View |
| B41888D3228M8 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 10V RADIAL | 78% | View |
| 517D228M035EN6AE3 | Vishay Sprague | CAP ALUM 2200UF 20% 35V RADIAL | 74% | View |
| MAL226065222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 71% | View |
Submit your RFQ for UPJ1C222MHD6 and get a quote within 24 hours.
