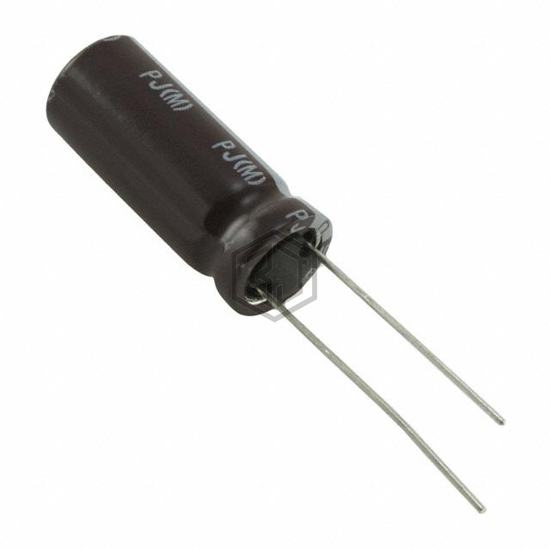

CAP ALUM 68UF 20% 10V RADIAL
UPJ1A680MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,687
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 97 mA @ 120 Hz |
| Ripple Current @ High Frequency | 155 mA @ 10 kHz |
| Impedance | 1.3 Ohms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1A680MDD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858G8686M008 | EPCOS - TDK Electronics | CAPACITOR | 100% | View |
| UPV1A680MFD1TD | Nichicon | CAP ALUM 68UF 20% 10V RADIAL | 98% | View |
| 686KXM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 68UF 20% 16V RADIAL | 78% | View |
| USF0J680MDD1TP | Nichicon | CAP ALUM 68UF 20% 6.3V RADIAL | 77% | View |
| 686KXM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 68UF 20% 35V RADIAL | 63% | View |
| 672D686H060DM5J | Vishay Sprague | CAP ALUM 68UF 60V RADIAL | 56% | View |
Submit your RFQ for UPJ1A680MDD and get a quote within 24 hours.
