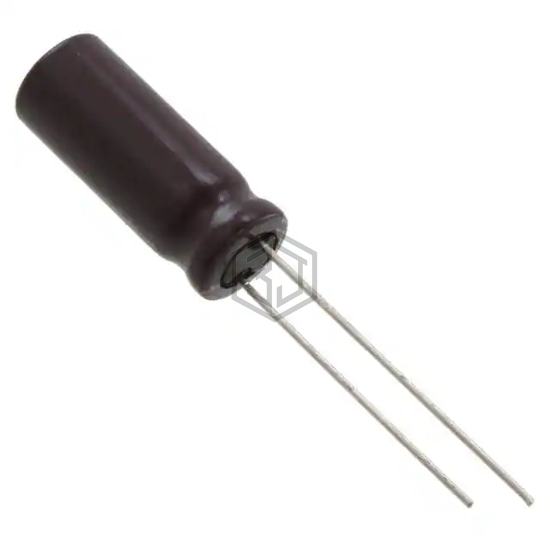

CAP ALUM 560UF 20% 10V RADIAL
UPJ1A561MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,971
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 590 mA @ 120 Hz |
| Ripple Current @ High Frequency | 730 mA @ 10 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1A561MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC0J561 | Panasonic Electronic Components | CAP ALUM 560UF 20% 6.3V RADIAL | 71% | View |
| EEU-HD1H561SB | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 70% | View |
| 601D567G050GL2 | Vishay Sprague | CAP ALUM 560UF 50V AXIAL | 56% | View |
| ELXY250ELL561MJ25S | United Chemi-Con | CAP ALUM 560UF 20% 25V RADIAL | 56% | View |
| MAL213630561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 35V RADIAL | 56% | View |
| 604D571F075JL7 | Vishay Sprague | CAP ALUM 570UF 75V AXIAL | 54% | View |
Submit your RFQ for UPJ1A561MPD and get a quote within 24 hours.
