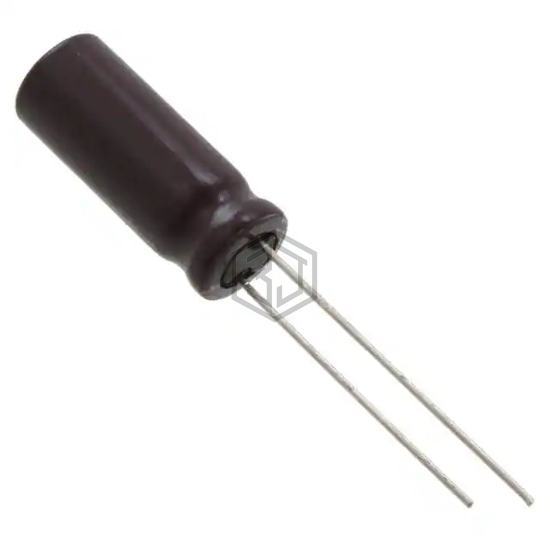

CAP ALUM 680UF 20% 6.3V RADIAL
UPJ0J681MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 1,861
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 605 mA @ 120 Hz |
| Ripple Current @ High Frequency | 730 mA @ 10 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.827" (21.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ0J681MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 678D667H010DG5J | Vishay Sprague | CAP ALUM 660UF 10V RADIAL | 68% | View |
| B41858C4687M8 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 16V RADIAL | 66% | View |
| UPA1C681MPD1TD | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 65% | View |
| MAL226030681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 60% | View |
| 672D667H012DM5G | Vishay Sprague | CAP ALUM 660UF 12V RAD | 56% | View |
| 672D687H015EK5C | Vishay Sprague | CAP ALUM 680UF 15V RADIAL | 56% | View |
Submit your RFQ for UPJ0J681MPD and get a quote within 24 hours.
