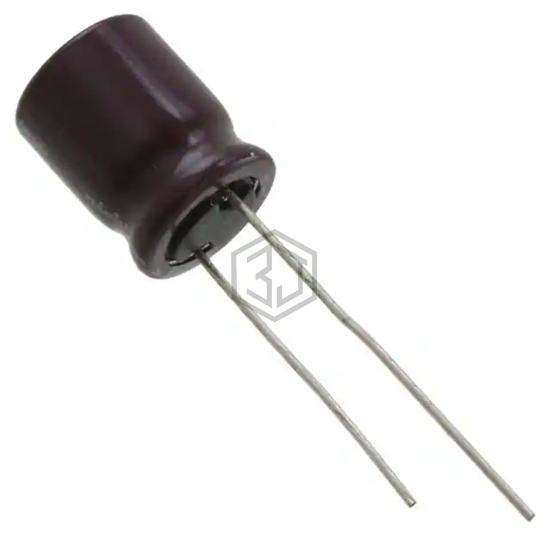

CAP ALUM 560UF 20% 6.3V RADIAL
UPJ0J561MPD6TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 289
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 485 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 10 kHz |
| Impedance | 210 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ0J561MPD6TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA0J561MPD1TD | Nichicon | CAP ALUM 560UF 20% 6.3V RADIAL | 86% | View |
| EEU-FK1A561 | Panasonic Electronic Components | CAP ALUM 560UF 20% 10V RADIAL TH | 76% | View |
| 600D567F030DX5 | Vishay Sprague | CAP ALUM 560UF 30V AXIAL | 70% | View |
| B41888C3567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 10V RADIAL | 62% | View |
| 860160474023 | Würth Elektronik | CAP ALUM 560UF 20% 25V RADIAL | 57% | View |
| 600D567G015DL4 | Vishay Sprague | CAP ALUM 560UF 150V AXIAL | 56% | View |
