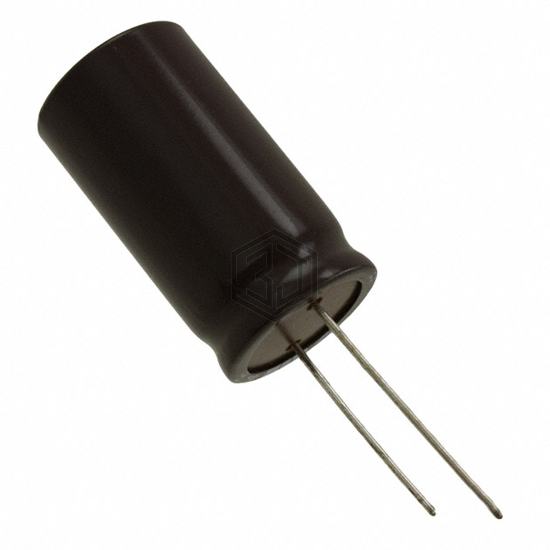

CAP ALUM 82UF 20% 450V RADIAL
UPB2W820MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 1,600
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 550 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2W820MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450KXW82MEFC18X30 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 93% | View |
| 450QXW82MEFR14.5X35 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 93% | View |
| 420HXW82MEFR18X20 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 91% | View |
| 420MXC82MEFCSN22X30 | Rubycon | CAP ALUM 82UF 20% 420V SNAP | 89% | View |
| MAL219359829E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 82UF 20% 500V SNAP | 85% | View |
| 400HXW82MEFR10X55 | Rubycon | CAP ALUM 82UF 20% 400V RADIAL | 81% | View |
Submit your RFQ for UPB2W820MRD and get a quote within 24 hours.
