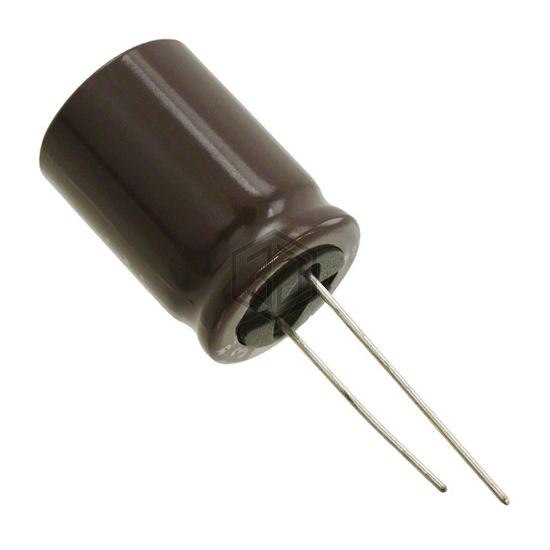

CAP ALUM 47UF 20% 450V RADIAL
UPB2W470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 7,644
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 425 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2W470MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41041B8476M | EPCOS - TDK Electronics | CAP ALUM 47UF 20% RADIAL | 100% | View |
| PEG124YL2470QE4 | KEMET | CAP ALUM 47UF 450V AXIAL | 96% | View |
| MALREKE05KS247P00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 450V RADIAL | 94% | View |
| 476LMU450M2BC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 450V SNAP | 91% | View |
| 250BXC47MEFC12.5X20 | Rubycon | CAP ALUM 47UF 20% 250V RADIAL | 77% | View |
| ESL476M100AH9AA | KEMET | CAP ALUM 47UF 20% 100V RADIAL | 54% | View |
Submit your RFQ for UPB2W470MHD and get a quote within 24 hours.
