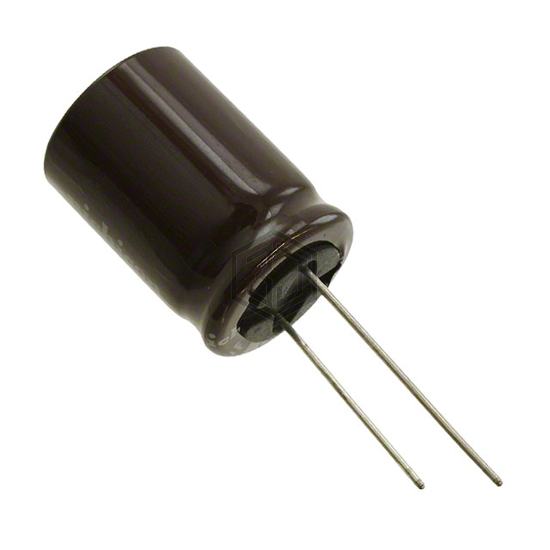

CAP ALUM 33UF 20% 450V RADIAL
UPB2W330MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 3,954
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2W330MHD1TN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ421ELL330MK30S | United Chemi-Con | CAP ALUM 33UF 20% 420V RADIAL | 86% | View |
| MAL215257339E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 450V RADIAL | 82% | View |
| 861111483001 | Würth Elektronik | CAP ALUM 33UF 20% 450V SNAP | 76% | View |
| 250CFX33MEFCG412.5X20 | Rubycon | CAP ALUM 33UF 20% 250V RADIAL | 75% | View |
| EGXE451ELL330MLN3S | United Chemi-Con | CAP ALUM 33UF 20% 450V RADIAL | 71% | View |
| UCY2C330MPD1TD | Nichicon | CAP ALUM 33UF 20% 160V RADIAL | 65% | View |
