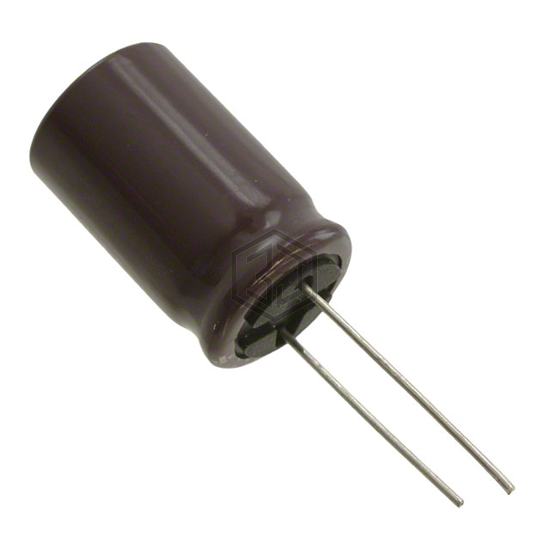

CAP ALUM 22UF 20% 450V RADIAL
UPB2W220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 8,204
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 275 mA @ 120 Hz |
| Ripple Current @ High Frequency | 550 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2W220MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450BXC22MEFC16X20 | Rubycon | CAP ALUM 22UF 20% 450V RADIAL | 90% | View |
| 350BXW22MEFR10X20 | Rubycon | CAP ALUM 22UF 20% 350V RADIAL | 82% | View |
| 450KXW22MEFC10X35 | Rubycon | CAP ALUM 22UF 20% 450V RADIAL | 80% | View |
| B43858C9226M | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 400V RADIAL | 77% | View |
| URZ2G220MHD6 | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 76% | View |
| 672D226F060CG5D | Vishay Sprague | CAP ALUM 22UF 60V RADIAL | 71% | View |
Submit your RFQ for UPB2W220MHD and get a quote within 24 hours.
