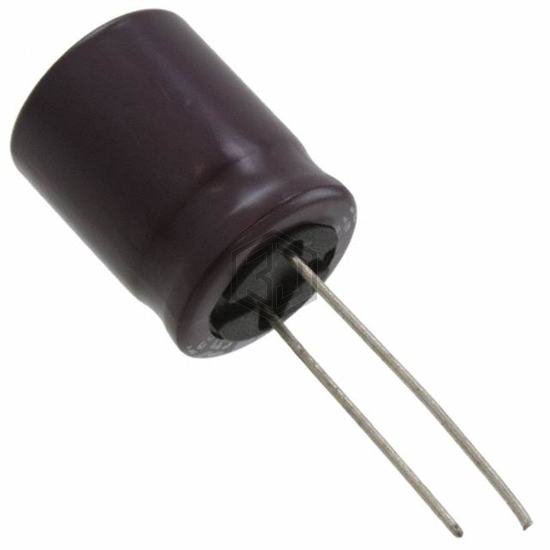

CAP ALUM 33UF 20% 350V RADIAL
UPB2V330MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 3,344
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2V330MHD1TN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43858C9336M000 | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 400V RADIAL | 83% | View |
| EKZN101ELL330MHB5D | United Chemi-Con | CAP ALUM 33UF 20% 100V RADIAL | 74% | View |
| UBX2C330MHL1TO | Nichicon | CAP ALUM 33UF 20% 160V RADIAL | 72% | View |
| EKY-101ETD330MJC5S | United Chemi-Con | CAP ALUM 33UF 20% 100V RADIAL | 56% | View |
| 672D336F100CG4D | Vishay Sprague | CAP ALUM 33UF 100V RADIAL | 56% | View |
| VHT33M25 | NTE Electronics, Inc | CAP ALUM 33UF 20% 25V RADIAL | 56% | View |
