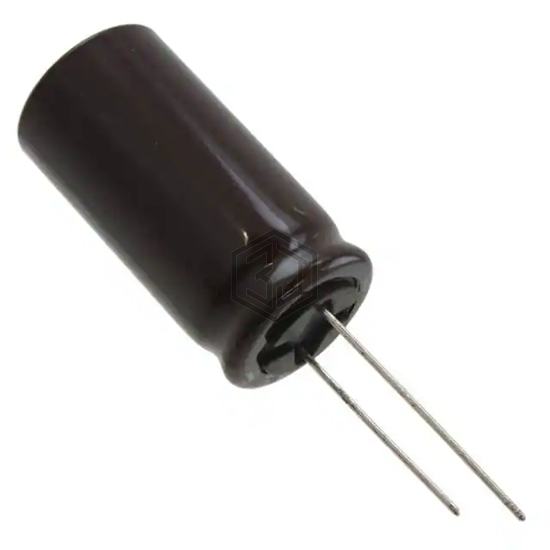

CAP ALUM 120UF 20% 350V RADIAL
UPB2V121MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 5,933
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 575 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.15 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2V121MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 350MXC120MEFC20X35 | Rubycon | CAP ALUM 120UF 20% 350V SNAP | 91% | View |
| MV2G121MNN1830 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 87% | View |
| SLP121M420E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 420V SNAP | 87% | View |
| LAQ2G121MELB25 | Nichicon | CAP ALUM 120UF 20% 400V SNAP | 83% | View |
| LAK2G121MELA30 | Nichicon | CAP ALUM 120UF 20% 400V SNAP | 83% | View |
| MAL209444121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 420V SNAP | 82% | View |
