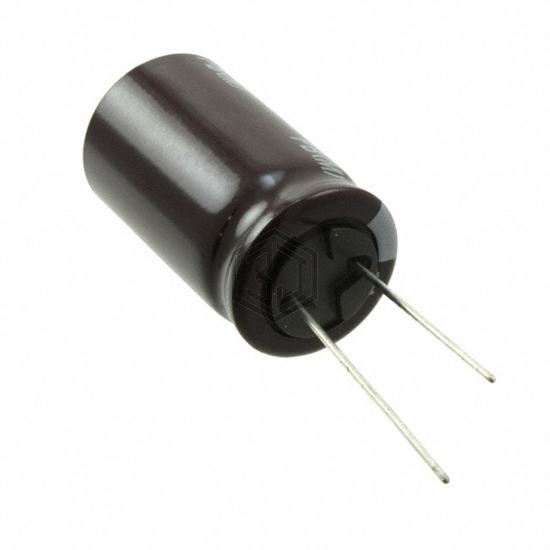

CAP ALUM 100UF 20% 350V RADIAL
UPB2V101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 9,969
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2V101MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43255A4107M | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 350V SNAP | 94% | View |
| EKMH401VNN101MR20W | United Chemi-Con | CAP ALUM 100UF 20% 400V SNAP | 88% | View |
| B43504E107M80 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 420V SNAP | 84% | View |
| B43504C5107M82 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 80% | View |
| EKXJ351ELL101MK50S | United Chemi-Con | CAP ALUM 100UF 20% 350V RADIAL | 76% | View |
| 381LR101M400J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 400V SNAP | 75% | View |
Submit your RFQ for UPB2V101MHD and get a quote within 24 hours.
