CAP ALUM 47UF 20% 400V RADIAL

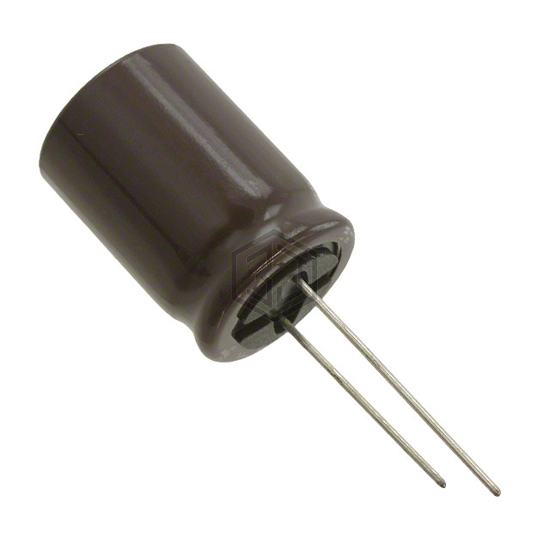

UPB2G470MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 6,749
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 375 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2G470MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EPAG451ELL470MK40S | United Chemi-Con | CAP ALUM 47UF 20% 450V RADIAL | 94% | View |
| EEU-EB2W470 | Panasonic Electronic Components | CAP ALUM 47UF 20% 450V RADIAL | 90% | View |
| URZ2G470MHD | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 84% | View |
| 450BXW47MEFR18X20 | Rubycon | CAP ALUM 47UF 20% 450V RADIAL | 81% | View |
| PV2H470MNN1825 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 76% | View |
| MAL211890003E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 200V T/H | 70% | View |
