CAP ALUM 22UF 20% 400V RADIAL

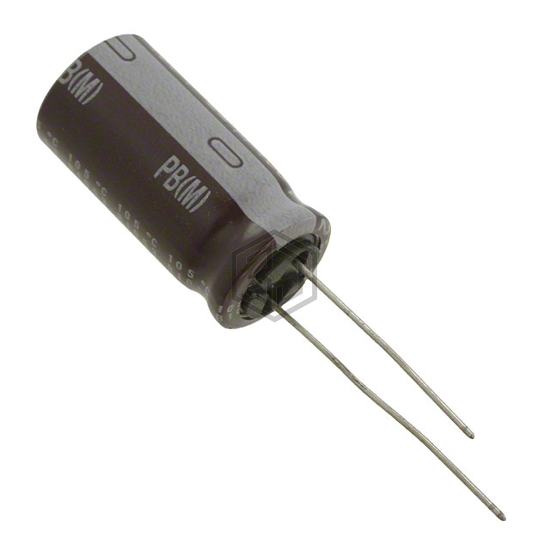

UPB2G220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 2,916
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 400 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2G220MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214232296E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 400V RADIAL | 96% | View |
| URZ2G220MHD6TN | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 95% | View |
| UBT2W220MHD1TN | Nichicon | CAP ALUM 22UF 20% 450V RADIAL | 81% | View |
| 226CKE200MLQ | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 200V RADIAL | 67% | View |
| EEU-TA1H220BJ | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 63% | View |
| UBW1H220MPD1TD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for UPB2G220MHD and get a quote within 24 hours.
