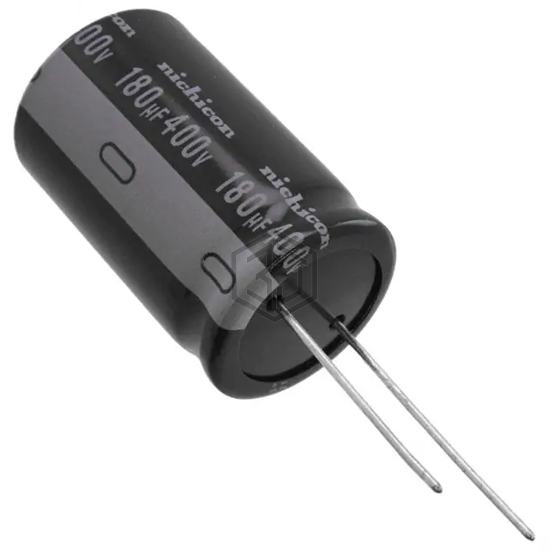

CAP ALUM 180UF 20% 400V RADIAL
UPB2G181MRD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 9,895
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2G181MRD6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2F181MELZ | Nichicon | CAP ALUM 180UF 20% 315V SNAP | 100% | View |
| B43504E187M60 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 420V SNAP | 92% | View |
| SLP181M350A7P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 350V SNAP | 89% | View |
| EKMS501VSN181MA30S | United Chemi-Con | CAP ALUM 180UF 20% 500V SNAP | 85% | View |
| 450MXG180MEFCSN25X30 | Rubycon | CAP ALUM 180UF 20% 450V SNAP | 83% | View |
| B43254B5187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 83% | View |
Submit your RFQ for UPB2G181MRD6 and get a quote within 24 hours.
