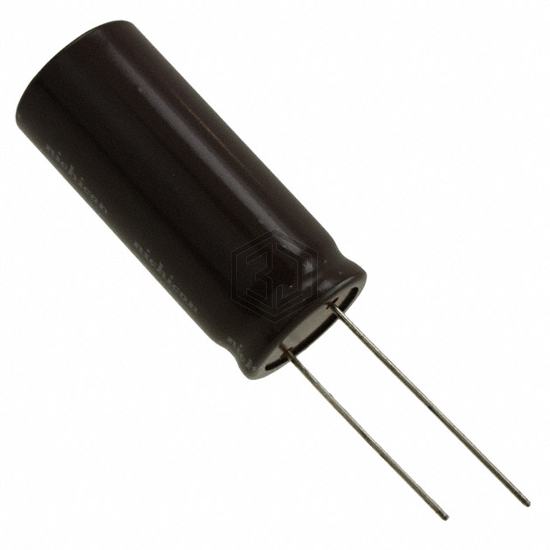

CAP ALUM 180UF 20% 400V RADIAL
UPB2G181MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 4,701
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2G181MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL209434181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 420V SNAP | 90% | View |
| UPH2W181MHD | Nichicon | CAP ALUM 180UF 20% 450V RADIAL | 88% | View |
| LASW6181MELC25 | Nichicon | CAP ALUM 180UF 20% 420V SNAP | 85% | View |
| B43644A5187M067 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 85% | View |
| MAL225979181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 500V SNAP | 72% | View |
| 860160674024 | Würth Elektronik | CAP ALUM 180UF 20% 50V RADIAL | 53% | View |
