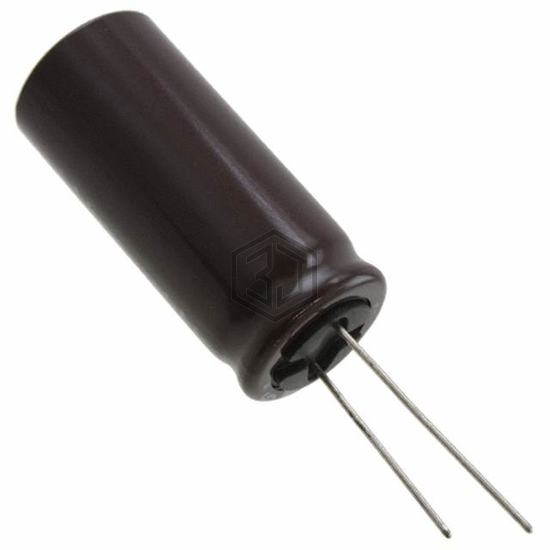

CAP ALUM 100UF 20% 400V RADIAL
UPB2G101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 7,662
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 550 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2G101MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43505A9107M80 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 400V SNAP | 92% | View |
| B43504B5107M002 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 90% | View |
| EKMQ451VSN101MQ25S | United Chemi-Con | CAP ALUM 100UF 20% 450V SNAP | 88% | View |
| B43254A4107M | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 350V SNAP | 88% | View |
| 450HXG100MEFC22X30 | Rubycon | CAP ALUM 100UF 20% 450V SNAP | 67% | View |
| 200WXA100MEFCGC18X20 | Rubycon | CAP ALUM 100UF 20% 200V RADIAL | 56% | View |
