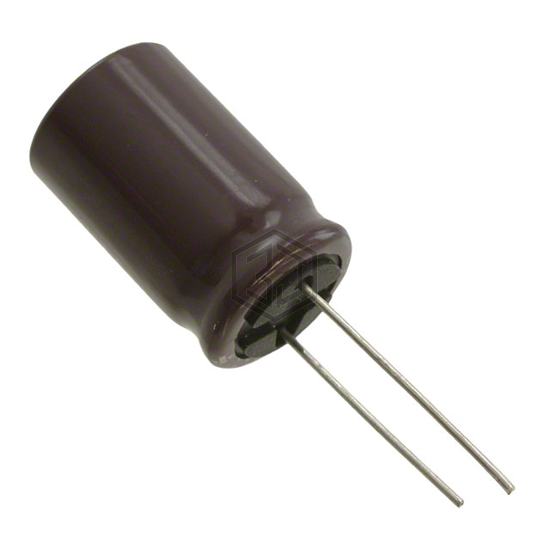

CAP ALUM 68UF 20% 250V RADIAL
UPB2E680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 9,488
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2E680MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43252A4686M | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 350V SNAP | 80% | View |
| 400HXW68MEFR16X20 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 79% | View |
| UCY2C680MHD3 | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 79% | View |
| UPZW6680MHD | Nichicon | CAP ALUM 68UF 20% 420V RADIAL | 77% | View |
| LGNW6680MELY25 | Nichicon | CAP ALUM 68UF 20% 420V SNAP | 76% | View |
| UAS2D680MHD | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 67% | View |
Submit your RFQ for UPB2E680MHD and get a quote within 24 hours.
