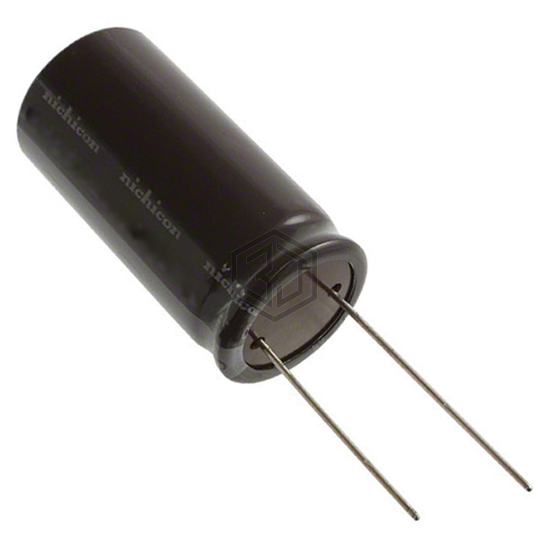

CAP ALUM 470UF 20% 250V RADIAL
UPB2E471MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 7,362
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2E471MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400VXH470MEFC30X40 | Rubycon | CAP ALUM 470UF 20% 400V SNAP | 77% | View |
| B43254A1477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 160V SNAP | 76% | View |
| 420VXH470MEFC30X45 | Rubycon | CAP ALUM 470UF 20% 420V SNAP | 75% | View |
| MAL225916471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 400V SNAP | 71% | View |
| EEU-FC1J471L | Panasonic Electronic Components | CAP ALUM 470UF 20% 63V RADIAL | 69% | View |
| 35ZLK470M10X20 | Rubycon | CAP ALUM 470UF 20% 35V RADIAL | 67% | View |
Submit your RFQ for UPB2E471MRD and get a quote within 24 hours.
