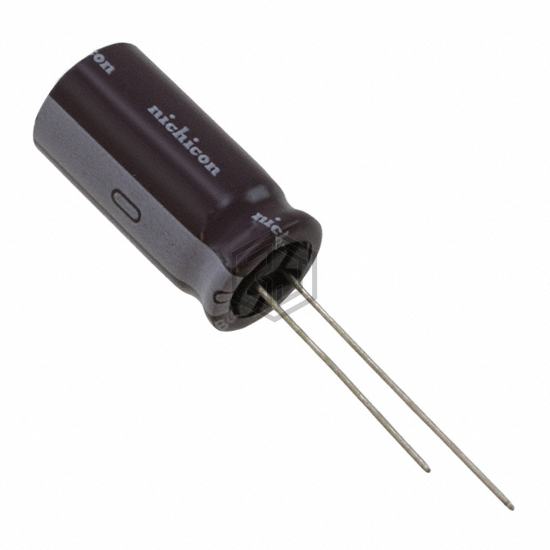

CAP ALUM 47UF 20% 250V RADIAL
UPB2E470MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 6,850
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2E470MHD1TO is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX470M400H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 400V SNAP | 77% | View |
| 450CXW47MEFR12.5X40 | Rubycon | CAP ALUM 47UF 20% 450V RADIAL | 75% | View |
| SEK470M350ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 350V RADIAL | 69% | View |
| 476CKE200M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 200V RADIAL | 66% | View |
| EEU-TA1J470 | Panasonic Electronic Components | CAP ALUM 47UF 20% 63V RADIAL | 65% | View |
| 30D476M035CB2A | Vishay Sprague | CAP ALUM 47UF 20% 35V AXIAL | 56% | View |
Submit your RFQ for UPB2E470MHD1TO and get a quote within 24 hours.
