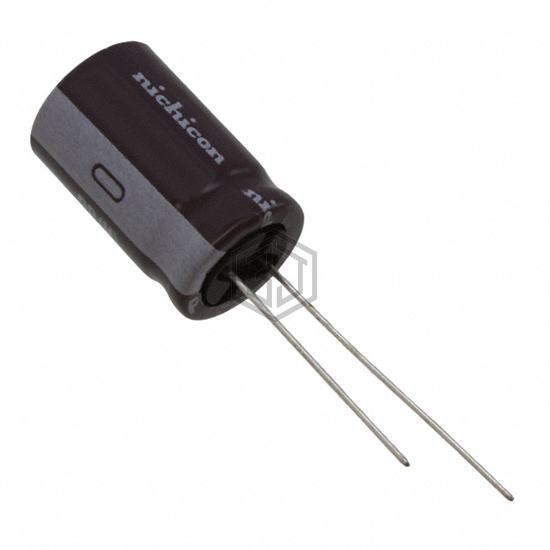

CAP ALUM 33UF 20% 250V RADIAL
UPB2E330MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 2,318
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPB2E330MHD1TO is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 336CKE350MNV | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 350V RADIAL | 82% | View |
| 160BXC33MEFC10X20 | Rubycon | CAP ALUM 33UF 20% 160V RADIAL | 81% | View |
| PZ2W330MNN1230 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 80% | View |
| B43851K2336M000 | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 250V RADIAL | 80% | View |
| 450BXC33MEFC16X20 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL | 77% | View |
| 100ZLJ33M8X11.5 | Rubycon | CAP ALUM 33UF 20% 100V RADIAL | 75% | View |
Submit your RFQ for UPB2E330MHD1TO and get a quote within 24 hours.
